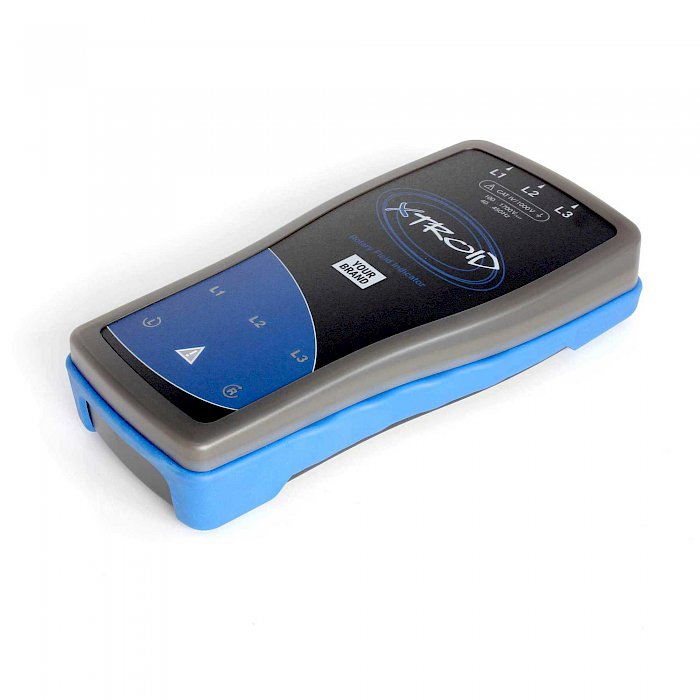

Rotary field indicator CAT IV 1000V
Model number: 8120
CAT IV 1000 V rotary field indicator - the model for high safety areas like utilities or railway
Attributes- High voltage phase indication for L1, L2, L3 with 3 LEDs
- Voltage Range: 100...1700 V; Frequency Range: 40...450 Hz
- Waterproof IP 65
- High voltage rotary field indication cw/ccw with 2 LEDs
- Developed for Utility Companies, Electric Power, Substation, Generators, Wind Power Stations
- Measurement category: CAT IV 1000V (highest security)
- Unique recognition of phase undervoltage or Faulty connection, using display with warning symbol
- High voltage protected Test Leads and Probes
- Soft plastic holster as shock absorber and improvement of grip
